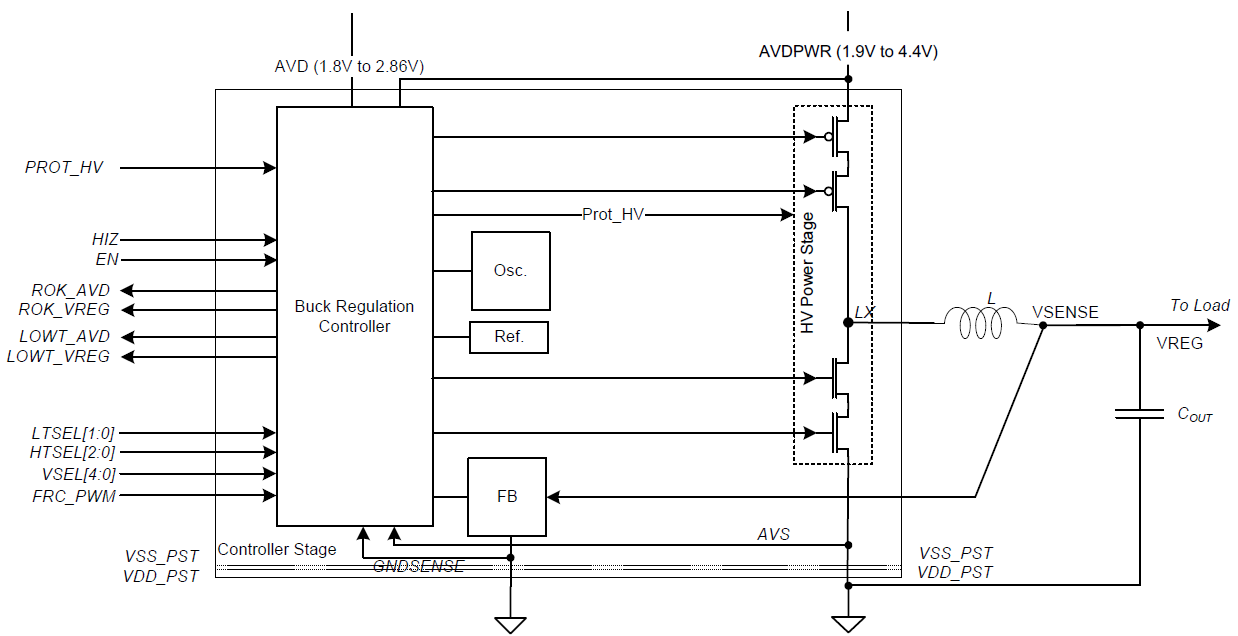

eSR-Niagara-Bu-dm-ref-[1.9-4.4]-[0.8-3.3].02, as any Power Management Virtual Component designed by Dolphin Design, is readily re-targetable toward any sub micron CMOS process.
Key Benefits
- High efficiency buck regulator (up to 95% in peak), thanks to dual mode (dm) controller
- Pulse Frequency Modulation (PFM) mode at low load and Pulse With Modulation (PWM) mode at high load.
- Low Bill-Of-Material: fully integrated feedback and active compensation loop do not require additional external passive components.
- Behavioral models: ease integration in SoC and optimized Power Management Network (PMNet) by verifying mode transitions as well as noise propagation
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.9 V | 4.4 V | |
|
Output Voltage
|
- | 0.8 V | 3.3 V | |
|
Output current configuration
|
- | - | 100 mA - 200 mA - 300 mA - 400 mA - 500 mA | - |
Applications
- Smart Headset
- TWS Earpods
- Smart Speaker
- Home Appliance
- AR - VR
- Voice Assistant
- Infotainment
- Hearing aids
- Voice-controlled devices
- Bluetooth
- NB-IoT
- ULP MCU
- WiFi
- GNSS
- Cellular IoT
Key Performances
- Up to 95% peak efficiency (for NDO configurations).
- 90 % efficiency down to 0.2 IMAX (for NDO configurations).
- 70 % efficiency down to 0.01 IMAX (for NDO configurations).
- 3 % DC output voltage accuracy
Technical information
- Technology: TSMC 55 uLP eFlash
- Add-ons:
- Over-voltage Protection Module (OPM)
