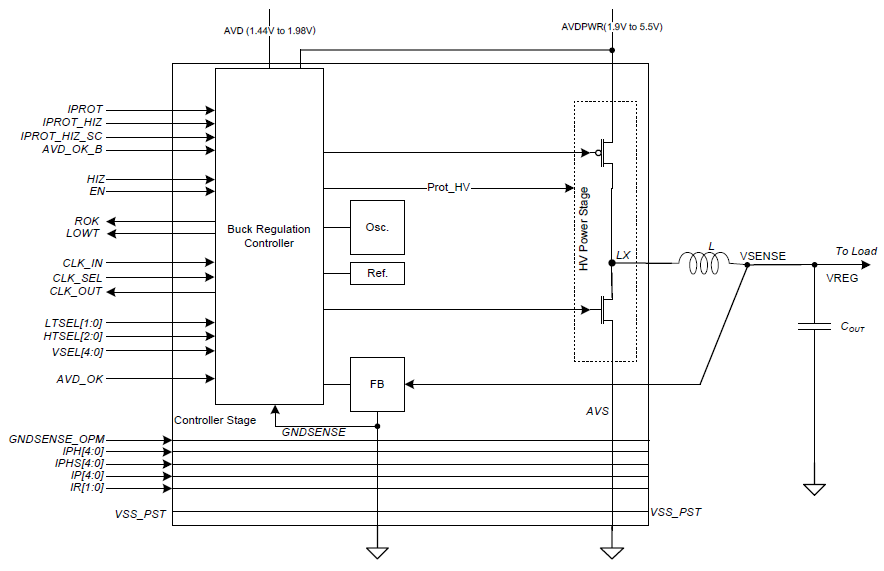

High efficiency DC-DC converter designed in GF 22FDX with full PWM operation mode. Can be configured with output current from 100 mA to 2A

Key Benefits

  • Works with a smaller inductance size compared to previous product generation
  • High efficiency buck regulator (up to 95% peak), over wide load current range
  • Pulse With Modulation (PWM) mode enabling to master the frequency response when supplying noise-sensitive analog loads
  • Automatic mode change of the Power Stage Unit, maintaining high-efficiency at low load current

Key Features

PARAMETERS CONDITION
Minimum value
Typical value
Maximum value
Input Voltage
- 1.9 V 5.5 V
Output Voltage
- 0.55 V 3.3 V
Output current configuration
- - 1000 mA;100 mA;1200 mA;1500 mA;200 mA;300 mA;400 mA;500 mA -

Applications

  • Smart Headset
  • TWS Earpods
  • Smart Speaker
  • Home Appliance
  • AR - VR
  • Voice Assistant
  • Infotainment
  • Hearing aids
  • Voice-controlled devices
  • Bluetooth
  • NB-IoT
  • ULP MCU
  • WiFi
  • GNSS
  • Cellular IoT

Key Performances

  • Supports input voltage from 1.9V to 5.5V
  • Programmable output voltage from 0.55 to 3.3V
  • Up to 95% peak efficiency
  • Requires a 4.7 uH inductor for a 100 mA output current configuration

Technical information

  • Technology: GlobalFoundries 22 FDX
