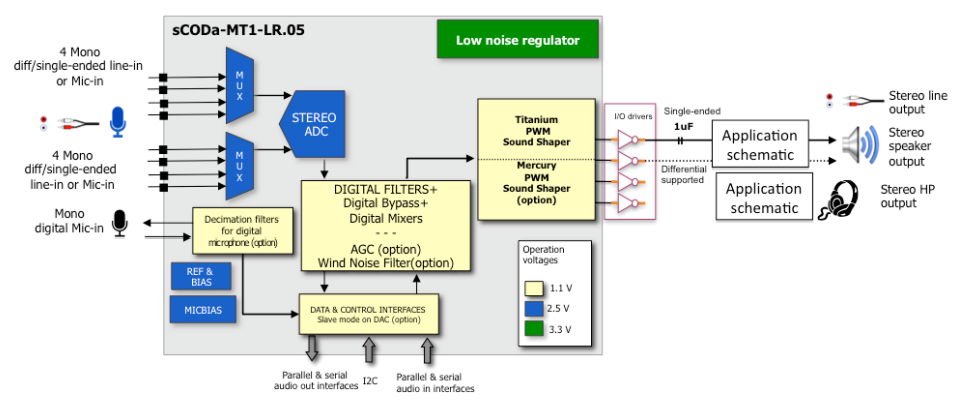

sCODa-MT1-LR.05 is an audio CODEC which provides the insurance of the best sound quality after integration into a SoC for Set-Top-Box or DTV applications. It benefits from unique features, such as the AGC to automaticaly adapt the voice level and a wind noise filter enabling the best recording quality. Moreover its ultra small area ensures a cost-effective SoC integration to Fabless companies.

Key Benefits

  • 1 stereo microphone input or Line-in (SE or diff.)
  • 1 digital microphone interface
  • 1 stereo bitstream output for external amplifier
  • Data & Control interface
  • Low noise embedded linear regulator
  • Automatic Gain Control (AGC)
  • Programmable wind noise filters
  • Jerkless and PLL-less features
  • Digital Mixer function with programmable gain

Key Performances

  • Dynamic Range over gain range for the ADC path: 100 dB
  • SNR: Up to 105 dB on DAC path depending on the application schematic
  • SNR: 90 dB A-weighted on the ADC path
  • Low power consumption:2.1 mW on the DAC path with IO powered by the regulator
  • Low power consumption: 6.6 mW +/- 20% on the ADC path
