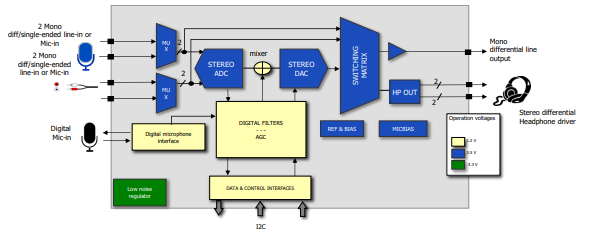

The sCODS100-LB-IO-N.15 is a feature-rich audio CODEC which provides the insurance of the best sound quality after integration into application processors for headphone. Its small area ensures a cost-effective SoC integration in advanced processes and its Cap-less differential output contributes to the reduction of the BoM cost and of the PCB size. Furthermore, fabless makers have the insurance to benefit from the best audio quality at system-level thanks to the unique features embedded with the CODEC for its best resilience to the various noise sources.

Key Benefits

  • Fast and easy integration with embedded analog I/O cells
  • Pop-up Noise Reduction System with predictable level
  • Embedded voltage regulator ensures the best resilience to noise from power supply and minimizes the bill of material
  • Programmable biasing circuit for ultra low power mode
  • Self adaptive sound level during recording with Automatic Gain Control (AGC)
  • Automatic Fs synchronization system
  • PLL-less solution for eliminating jittered PLL which decreases audio performances
  • Jerkless solution ensures the best resilience to data clock period deviation

Key Performances

  • 100 dB SNR on the DAC to line-out path
  • 100 dB DR over gain range and 90 dB SNR on the ADC path
  • Power consumption in Playback stereo DAC to headphone: 8.5 mW @ 3.3 V /1.1V
  • Power consumption in low power mode, Record mono: 4.1 mW
