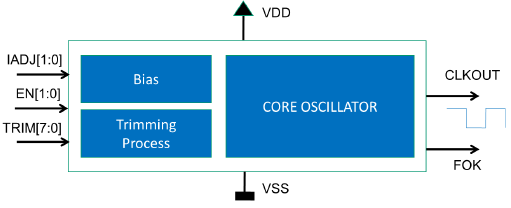

Low-power 32 kHz RC oscillator in TSMC 22ULL.
Key Benefits
- Low current consutmtion minimizing deep-sleep budgert
- Fast wake-up
- Active, shutdown and stand-by modes
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 0.72 V | 0.99 V |
Applications
- Bluetooth
- Cellular IoT
- GNSS
- Hearing aids
- NB-IoT
- Smart Headset
- Smart Speaker
- TWS Earpods
- ULP MCU
Key Performances
- Nominal frequency: 32.768 kHz
- Frequency accuracy (post-trimming): ±0.5%
- Active consumption (TT, 0.8 V, 25°C): 86 nA
- Shutdown current : 3 nA
Technical information
- Technology: TSMC 22 uLL
- Add-ons:
- -
