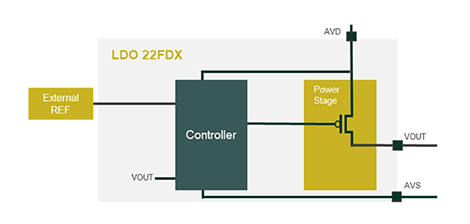

Capacitor-less low input voltage LDO in GlobalFoundries 22FDX with programmable output voltage to supply core logic domain, SRAM array or RF/analog domain. It features normal and low-power (LP) operating modes to adjust the amount of output current depending on the application requirements.
Key Benefits
- Low silicon area
- Fast transient
- Low BoM cost, no output capacitor required
- Low-power (LP) mode to supply AON domain with low quiescent current
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 0.72 V | 1.2 V | |
|
Output Voltage
|
- | 0.5 V | 0.8 V | |
|
Output current configuration
|
- | - | 10 mA;20 mA;50 mA | - |
|
Quiescent current typical value
|
Normal Mode, Iload=0mA | - | 10 uA | - |
|
Accuracy
|
PVT, including Line and Load Regulation, @Vout=0.8V | - | - | -3% min to +3% max |
|
PSRR
|
@DC, Normal mode, from AVD | - | -40 dB | - |
Applications
- Bluetooth
- Cellular IoT
- GNSS
- Hearing aids
- NB-IoT
- Smart Headset
- Smart Speaker
- TWS Earpods
- ULP MCU
- Voice-controlled devices
- Voice Assistant
- WiFi
Key Performances
- 0.72V - 1.2V input voltage range
- Programmable output voltage from 0.5 to 0.8V
- Normal and LP modesOutput current in normal mode : 10, 20 or 50 mA (configurable)
- Output current in LP mode : 1 to 5 mA (configurable)
- ± 3 % DC accuracy
- Quiescent current in normal mode 55 uA Shutdown current 50 nA
- High PSRR : - 40 dB @ DC
Technical information
- Technology: GlobalFoundries 22 FDX
