The caplessLDO-ref-[1.8-5.5]-[0.9-1.4].01 is a capacitor-less Linear Regulator with programmable output voltage, used to generate SoC internal voltage supply from a Li-Ion battery, coin cell, 2xAA batteries, USB (i.e. 1.8 V to 5.5 V input supply) It embeds its own logic control and biasing circuit, enabling to operate as a standalone component.
Key Benefits
- Low BoM, no external capacitor required
- Low shutdown current to ensure low power power consumption in sleep mode when the LDO is turned off
- Three modes : operation, IDLE and STOP1 to enable various power modes at SoC-level
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.8 V | 5.5 V | |
|
Output Voltage
|
- | 0.9 V | 1.4 V | |
|
Output current configuration
|
- | - | 50 mA | - |
Applications
- Smart Headset
- TWS Earpods
- Smart Speaker
- Voice Assistant
- Hearing aids
- Voice-controlled devices
- Bluetooth
- NB-IoT
- ULP MCU
- WiFi
- GNSS
- Cellular IoT
Key Performances
- Input voltage from 1.8V to 5.5V
- Programmable output voltage from 0.9V to 1.4V
- Up to 50 mA output current in operation mode
- +/- 3.5 % DC accuracy

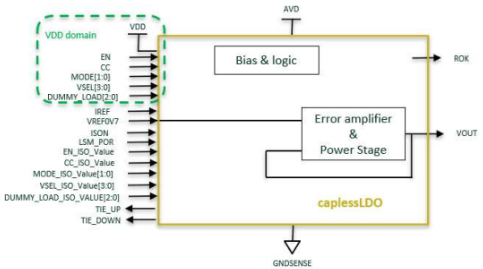

- A Regulation OK signal (ROK) informs the PMU controller that the caplessLDO-rok-[1.8-5.5]-[0.9-1.4].01 has completed its booting sequence and the output is maintaining regulation for the current drawn by the load.
Technical information
- Technology: Samsung 65 LP eFlash
