Low-quiescent DC/DC converter in TSMC 22ULL 2.5 V process with high efficiency at light load.

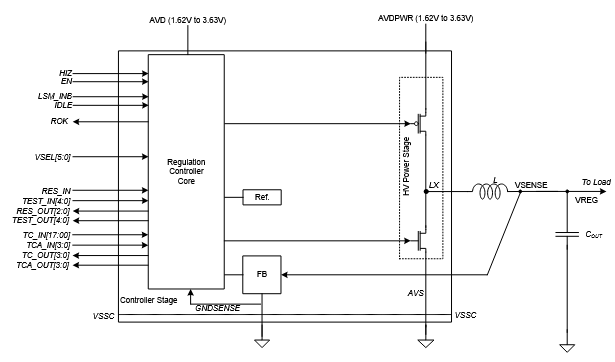

Key Benefits
- Low quiescent-current minimizing deep-sleep budget
- High-efficiency at light load extending battery lifetime
- Low ripple level compatible with noise sensitive loads
- Support of small, low-cost 1 uH inductor
- Configurable architecture
- Minimized silicon area
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.62 V | 3.63 V | |
|
Output Voltage
|
- | 0.6 V | 2.5 V | |
|
Output current configuration
|
- | - | 100 mA;10 mA;200 mA;300 mA;30 mA;400 mA;500 mA;50 mA;600 mA | - |
Applications
- Bluetooth
- Cellular IoT
- GNSS
- Hearing aids
- NB-IoT
- Smart Headset
- Smart Speaker
- TWS Earpods
- ULP MCU
- Voice-controlled devices
- Voice Assistant
- WiFi
Key Performances
- 295 nA quiescent current (I100HDO configuration)
- 150 nA fast-shutdown current (I100HDO configuration)
- Up to 90 % peak efficiency for Vin=3.3V to Vout=1.8V (I100HDO configuration)
- Up to 80 % peak efficiency for Vin=3.3V to Vout=0.8V (I100HDO configuration)
- 78 % efficiency at 100 µA load current (I100HDO configuration)
- 73 % efficiency for 10 µA load current (I100HDO configuration)
- 3 % DC output voltage accuracy
Technical information
- Technology: TSMC 22 uLL
- Add-ons:
- -
