Dolphin Design offers a Reusable Power Kit Library, toward three objectives: To standardize and ease Power Management Network integration (PMNet) To enable diverse optimizations To reduce Time-to-Market

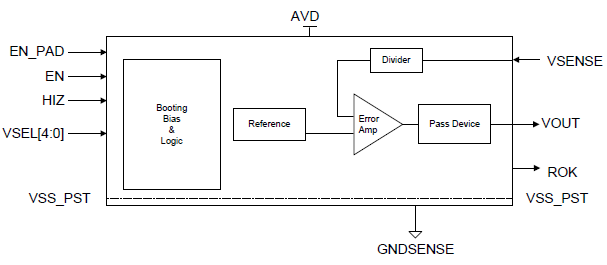

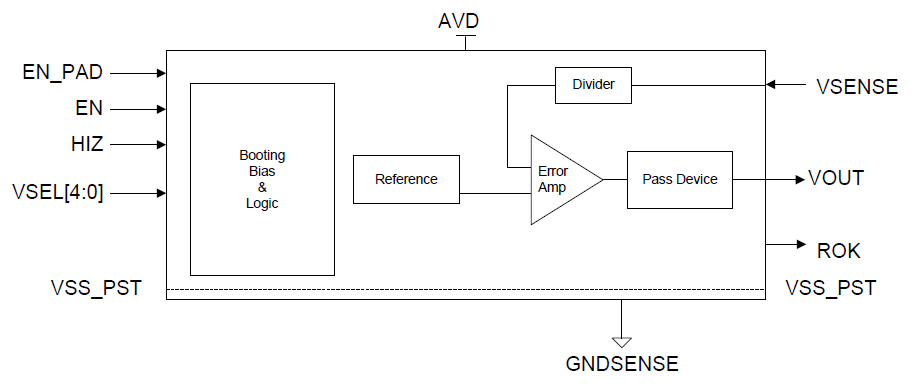

Key Benefits
- Fast load transient response
- Output voltage drop is less than 10 mV for a 16 to 65 mA load current step change in 50 ns
- Voltage settles withing 2 mV of final voltage in less than 10 us under the same conditions
- Low Bill-of-Material
- Optimized in density for the best trade-off for the given output current and input voltage range
- A cost-efficient solution compared to external Power Management
- Behavioral models
- Ease of integration in SoC and optimized Power
- Management Network (PMNet) by verifying mode transitions as well as noise propagation
- Guaranteed performances
- Secures the SoC integration thanks load transient template and abacus, enabling to verify transient performances depending on on-chip capacitor and current variations
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 2.97 V | 3.63 V | |
|
Output Voltage
|
- | 0.8 V | 2.5 V |
Applications
- Smart Headset
- TWS Earpods
- Smart Speaker
- Home Appliance
- AR - VR
- Voice Assistant
- Infotainment
- Hearing aids
- Voice-controlled devices
- Bluetooth
- NB-IoT
- ULP MCU
- WiFi
- GNSS
- Cellular IoT
Key Performances
- 3 % overall output voltage DC accuracy.
- -45 dB typical PSRR @ DC.
- 115 uA typical current consumption at no load.
- 250 uVRMS total integrated noise from 20 Hz to 20 kHz
Technical information
- Technology: TSMC 40 LP
