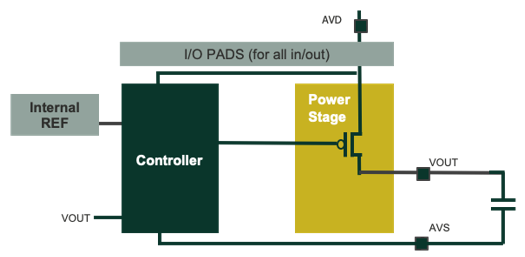

iLR-Victoria-ref-1.62-3.63-0.8-2.5.02_TSMC_55_uLP is a Low-dropout LDO linear regulator in TSMC 55uLP to supply logic islands.
Key Benefits
- Low dropout: 380mV of dropout at ILOAD= IMAX
- Low Bill-of-Material: optimized in density for the best trade-off for the given output current and input voltage range
- A cost-efficient solution compared to external Power Management
- Behavioral models: ease of integration in SoC and optimization of Power Management Network (PMNet) using models to verify mode transitions as well as noise propagation
- Safe integration in the SoC thanks to transfer functions, templates and profiles included in the specification
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.62 V | 3.63 V | |
|
Output Voltage
|
- | 0.8 V | 2.5 V |
Applications
- AR - VR
- Bluetooth
- Cellular IoT
- GNSS
- Hearing aids
- Home Appliance
- Infotainment
- NB-IoT
- Smart Headset
- Smart Speaker
- TWS Earpods
- ULP MCU
- Voice-controlled devices
- Voice Assistant
- WiFi
Key Performances
- 3 % overall output voltage DC accuracy.
- -45 dB typical PSRR @ DC.
- 45 uA typical current consumption at no load.
- 250 uVRMS total integrated noise from 20 Hz to 20 kHz
Technical information
- Technology: TSMC 55 uLP
- Add-ons:
- Power-On-Reset and Brown-On-Reset circuit (POR-BOR)
- Temperature sensor
- Power ON indicator
