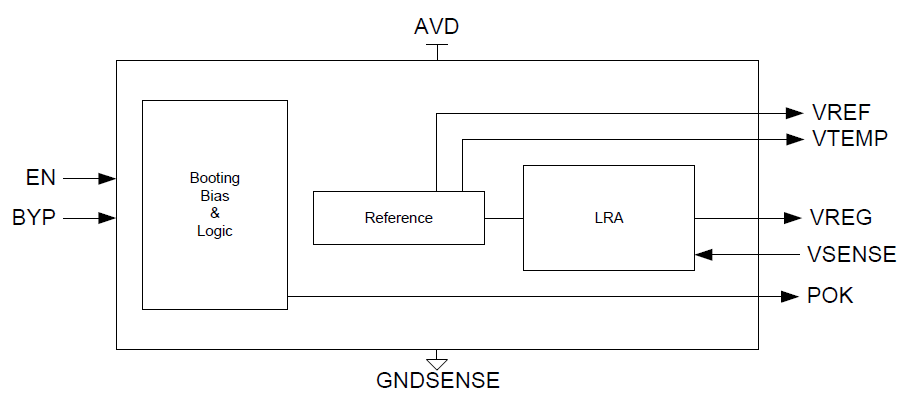

LRA-2.97-3.63-1.8_TSMC_180_eFlash is a Low noise linear regulator LDO in TSMC 180eF operating from 2.97V to3.63V input voltage. The LRA output is 1.8V. It also embeds voltage reference and pass devices in TSMC 180eF
Key Benefits
- 1.8 V output reference voltage with 5% accuracy
- Configuration of output current from 100 mA to 1000 mA
- Suitable for logic islet and analog islet
- Low quiescent current: 35 uA
- Output Noise: <500 uVms in band [10Hz-100kHz]
- Low Bill-off-Materials
- Compatible with both Tantalum and Ceramic capacitors
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 2.97 V | 3.63 V | |
|
Output Voltage
|
- | 1.8 V | ||
|
Output current configuration
|
- | - | 100 mA | - |
Applications
- Smart Headset
- TWS Earpods
- Smart Speaker
- Home Appliance
- AR - VR
- Voice Assistant
- Infotainment
- Hearing aids
- Voice-controlled devices
- Bluetooth
- NB-IoT
- ULP MCU
- WiFi
- GNSS
- Cellular IoT
Key Performances
- -
Technical information
- Technology: TSMC 180 eFlash
