Linear Regulator, Low Noise optimized for sensitive application such as RF or PLL blocks

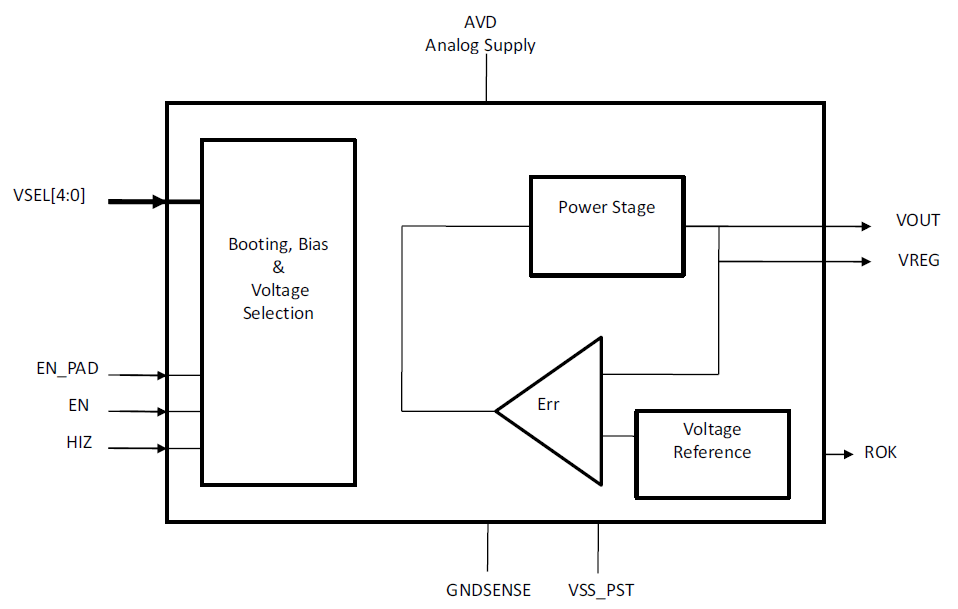

Key Benefits

  • Low noise: high power Supply Rejection Ratio (PSRR): - 65 dB at F < 10 kHz
  • Low intrinsic noise: 20 uVRMS at 10 Hz to 20 kHz
  • Low Bill-of-Material: optimized in density for the best trade-off for the given output current and input voltage range
  • Cost efficient solution compared to external Power Management.
  • Compatible with both Tantalum and ceramic capacitors
  • Behavioral models: ease integration in SoC and optimized Power Management Network (PMNet) by verifying mode transitions as well as noise propagation

Key Features

PARAMETERS CONDITION
Minimum value
Typical value
Maximum value
Input Voltage
- 2.0 V 5.5 V
Output Voltage
- 1.8 V 5.0 V
Output current configuration
- - 100 mA -

Applications

  • Smart Headset
  • TWS Earpods
  • Smart Speaker
  • Home Appliance
  • AR - VR
  • Voice Assistant
  • Infotainment
  • Hearing aids
  • Voice-controlled devices
  • Bluetooth
  • NB-IoT
  • ULP MCU
  • WiFi
  • GNSS
  • Cellular IoT

Key Performances

  • 3 % DC output voltage accuracy.
  • - 70 dB PSRR.
  • Different load current configuration: from 100 mA to 500 mA.
  • 20 uVRMS total integrated noise from 20 Hz to 20 kHz

Technical information

  • Technology: TSMC 180 G
  • Add-ons:
    • Over-voltage protection module (OPM) required for 2.7 to 5.5 V and 1.9 to 4.4 V input voltage range. The OPM enables over-voltage operation (up to 5.5 V) while using standard process 3.3 V devices. Power-On-Reset and Brown-On-Reset circuit (POR-BOR) Temperature sensor Power ON indicator
