Dolphin Design provides a complete Power Management IPs platform, toward three objectives: To standardize and ease Power Regulation Network integration To enable diverse optimizations To reduce Time-to-Market To avoid expensive solutions, such as additional mask layer or external regulators, the library features a cost effective alternative with a set of Over-voltage Protection Modules (OPM). These companions for regulators enable over-voltage operation while using standard process 1.8 V devices. The OPM-Angel-AR-LP is optimized to be used for retention mode in low power applications.

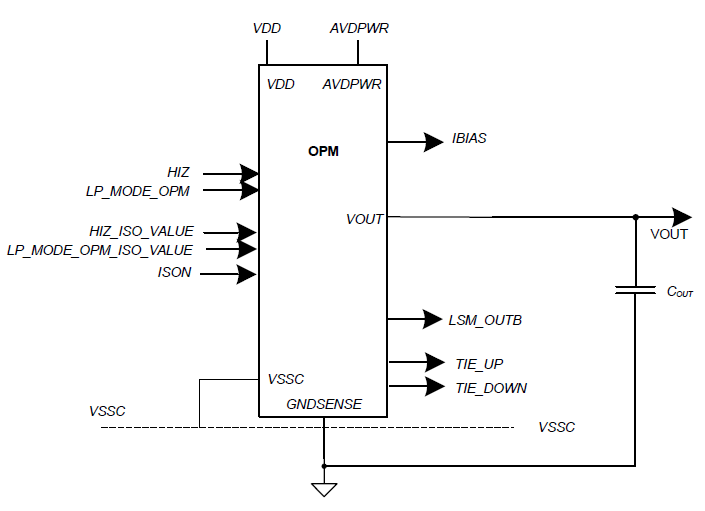

Key Benefits
- Over-voltage protection biasing for embedded regulators
- Avoids expensive solutions while enabling direct battery connection.
- Built-in over-voltage protection (up to 5.5 V) using 3.3 V transistors
- Low-leakage for SoC retention mode
- Embedded Level Shifters
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.9 V | 5.5 V | |
|
Output Voltage
|
- | 2.6 V | ||
|
Output current configuration
|
- | - | 10 mA | - |
Applications
- Bluetooth
- Cellular IoT
- GNSS
- Hearing aids
- NB-IoT
- Smart Headset
- Smart Speaker
- TWS Earpods
- ULP MCU
- Voice-controlled devices
- Voice Assistant
- WiFi
Key Performances
- Output voltage accuracy: 3 % in normal mode 15 % in low power mode
- Current consumption 11.5 uA in normal mode and 0.6 uA in low power mode
- Up to 10 mA maximum load current (restricted to supply Dolphin Design power management Virtual Components)
Technical information
- Technology: TSMC 40 uLP
