Dolphin Design offer a Reusable Power Kit Library toward three objectives: To standardize and ease Power Regulation Network integration To enable diverse optimizations To reduce Time-to-Market To avoid expensive solutions, such as additional mask layer or external regulators, the library features a cost effective alternative with a set of Over-voltage Protection Modules (OPM). These companions for regulators enable over-voltage operation while using standard process 3.3 V devices.

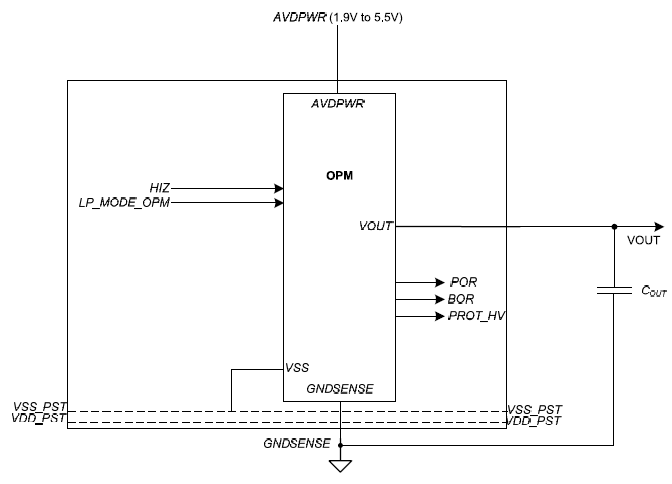

The OPM-Angel-AR is optimized to be used for retention mode in low power applications.
Key Benefits
- Over-voltage protection biasing for embedded regulators
- Avoids expensive solutions while enabling direct baterry connection.
- Built-in over-voltage protection (up to 5.5 V) using 3.3 V transistors
- Over-voltage power range: 1.9 V to 5.5 V
- Fixed 2.6 V regulated output voltage with 10% accuracy
- Low-leakage for SoC retention mode
- Low power mode quiescent current (at ILOAD = 0 mA): 400 nA
- Low noise enhancement: improve the network PSRR up to 40 dB when input supply is higher than 2.8 V
- Behavioral models: ease of integration in SoC and optimization of Power Management Network (PMNet) using models to verify mode transitions as well as noise propagation
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.9 V | 5.5 V | |
|
Output Voltage
|
- | 0.8 V | 2.5 V | |
|
Output current configuration
|
- | - | 5 mA | - |
Applications
- Smart Headset
- TWS Earpods
- Smart Speaker
- Home Appliance
- AR - VR
- Voice Assistant
- Infotainment
- Hearing aids
- Voice-controlled devices
- Bluetooth
- NB-IoT
- ULP MCU
- WiFi
- GNSS
- Cellular IoT
Key Performances
- Output voltage accuracy: 3 % in normal mode 10 % in low power mode
- Current consumption 10 uA in normal mode and 300 nA in low power mode
- Up to 5 mA maximum load current (restricted to supply Dolphin Design power management Virtual Components)
Technical information
- Technology: TSMC 55 uLP eFlash
