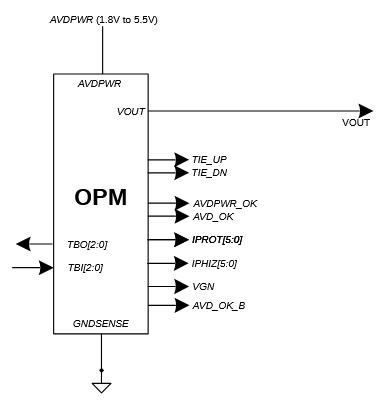

OPM-G2-1.8-5.5-2.6.01_SMIC_40_EF is an Over-voltage Protection Module for regulators in SMIC 40eF that handles direct connection of voltage regulators to a 5V battery using standard 2.5 OD 3.3V devices.
Key Benefits
- 1.8 V to 5.5 V input supply voltage
- Junction temperature range from -40 °C to 150 °C
- 1.62 V to 2.95 V regulated output voltage
- Designed with 3.3 V transistors and HVMOS
- Built-in over-voltage protection
- Local Supply Monitoring (LSM)
- Embedded HV polarization signals
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.8 V | 5.5 V | |
|
Output Voltage
|
- | 2.6 V | ||
|
Output current configuration
|
- | - | NONE | - |
Applications
- AR - VR
- Bluetooth
- Cellular IoT
- GNSS
- Hearing aids
- Home Appliance
- Infotainment
- NB-IoT
- Smart Headset
- Smart Speaker
- TWS Earpods
- ULP MCU
- Voice-controlled devices
- Voice Assistant
- WiFi
Key Performances
- Current consumption: 350 nA
- Up to 10 mA maximum load current
Technical information
- Technology: SMIC 40 eFlash
- Add-ons:
- -
