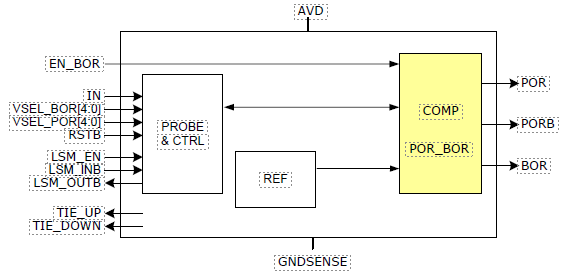

Power-On-Reset and Brown-Out-Reset with programmable detection thesholds

Key Benefits

  • A flexible offering enabling to implement only the relevant features
  • Ultra low power consumption of 13 μ
  • A in normal mode and 5 nA in low power mode enabling to optimize the overall consumption of the Always-On
  • Possibility to disable the BOR monitoring during low power mode in order to save power
  • High programmability: POR, PON and BOR thresholds are all programmable. BOR allows a dynamic programming to comply with the supply voltage of the power domain
  • Re-bootable PON when the supply is re-started or reset

Key Features

PARAMETERS CONDITION
Minimum value
Typical value
Maximum value
Input Voltage
- 1.44 V 1.98 V
Output Voltage
- 0.6 V 1.8 V

Applications

  • AR - VR
  • Bluetooth
  • Cellular IoT
  • GNSS
  • Hearing aids
  • Home Appliance
  • Infotainment
  • NB-IoT
  • Smart Headset
  • Smart Speaker
  • TWS Earpods
  • ULP MCU
  • Voice-controlled devices
  • Voice Assistant
  • WiFi

Key Performances

  • Current consumption: 15 uA in normal mode and 100 nA in low power mode
  • Typical BOR threshold voltage: 86% * Input monitored voltage
  • Typical POR threshold voltage: 87% * Input monitored voltage

Technical information

  • Technology: GlobalFoundries 22 FDX
  • Add-ons:
    • -
