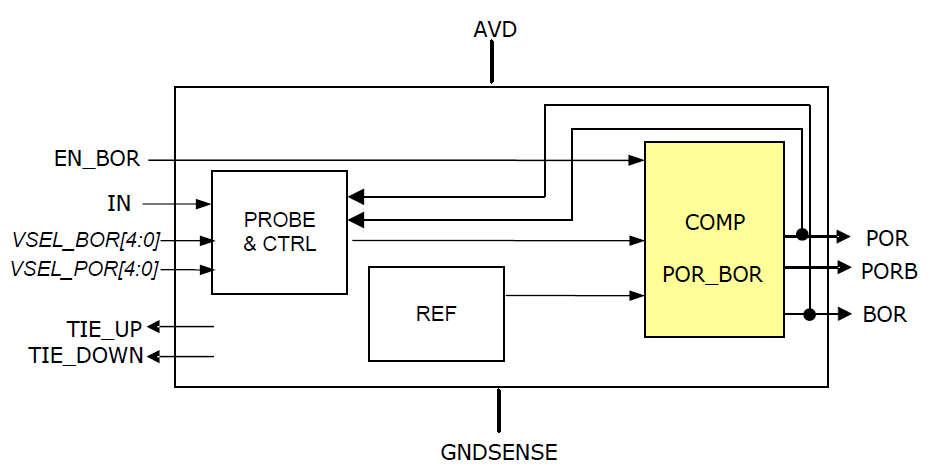

To proceed, putting a voltage detector at power domains input is needed in order to send Power-On-Reset (POR) and Brown-out Reset (BOR) signals. Our flexible offering includes both ultra low power detectors dedicated to Always-on domain and watchers for the rest of the SoC.
Key Benefits
- Ultra low power consumption of 13 uA in normal mode and 5 nA in low power mode enabling to optimize the overall consumption of the Always-On.
- Possibility to disable the BOR monitoring during low power mode in order to save power.
- High programmability: POR, PON and BOR thresholds are all programmable. BOR allows a dynamic programming to comply with the supply voltage of the power domain.
- Re-bootable PON each time the corresponding regulator is re-started.
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.62 V | 3.63 V | |
|
Output Voltage
|
- | 0.8 V | 5.0 V |
Applications
- Smart Headset
- TWS Earpods
- Smart Speaker
- Home Appliance
- AR - VR
- Voice Assistant
- Infotainment
- Hearing aids
- Voice-controlled devices
- Bluetooth
- NB-IoT
- ULP MCU
- WiFi
- GNSS
- Cellular IoT
Key Performances
- Current consumption: 13 uA in normal mode and 5 nA in low power mode. Typical BOR threshold voltage: 86% * Input monitored voltage. Typical POR threshold voltage: 87% * Input monitored voltage
Technical information
- Technology: TSMC 55 LP
