Combined Power-On-Reset and Low-voltage detector designed in Samsung Foundries 65nm LFR6LP Bias current reference are provided by capacitor-less low quiescent LDO designed in the same process node (see qLR-Della-cl-ref-[1.8-5.5]-[0.9-1.4].02 )
Key Benefits
- Low-voltage monitoring solution for power-critical IoT applications

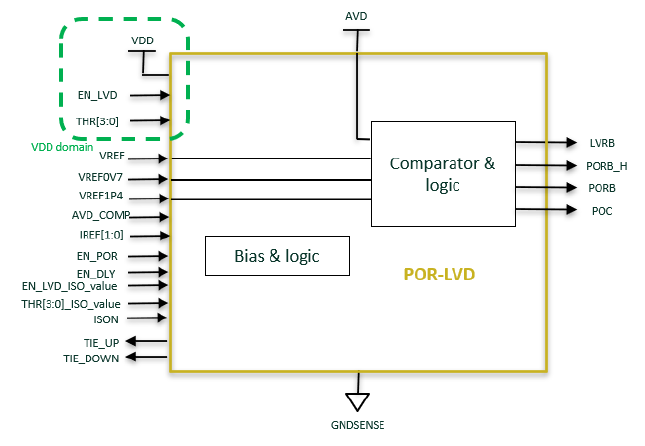

- The POR-LVD-[1.8-5.5]-[0.9-1.4].01 includes a Power-On-Reset used to monitor AVD and VDD supplies and to generate information to the SoC regarding the proper establishment of these AVD and VDD supplies.
- The detection threshold for VDD is fixed while the threshold for AVD monitoring is programmable. For a SoC in an ultra-low power mode, the circuits allowing a programmable threshold monitoring of AVD can be de-activated to reduce current consumption.
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.8 V | 5.5 V | |
|
Output Voltage
|
- | 0.9 V | 1.4 V | |
|
Output current configuration
|
- | - | NONE | - |
Applications
- Smart Headset
- TWS Earpods
- Smart Speaker
- Voice Assistant
- Hearing aids
- Voice-controlled devices
- Bluetooth
- NB-IoT
- ULP MCU
- WiFi
- GNSS
- Cellular IoT
Key Performances
- Monitored voltage range for AVD from 1.8 V to 5.5 V
- The AVD monitoring threshold is programmable in normal operating mode
- Monitored voltage range for VDD: from 0.9 V to 1.4 V
- POR hysteresis: 100 mV
- 50 nA of operating current for POR function
- 200 nA of operating current for POR and LVD functions
Technical information
- Technology: Samsung 65 LP eFlash
