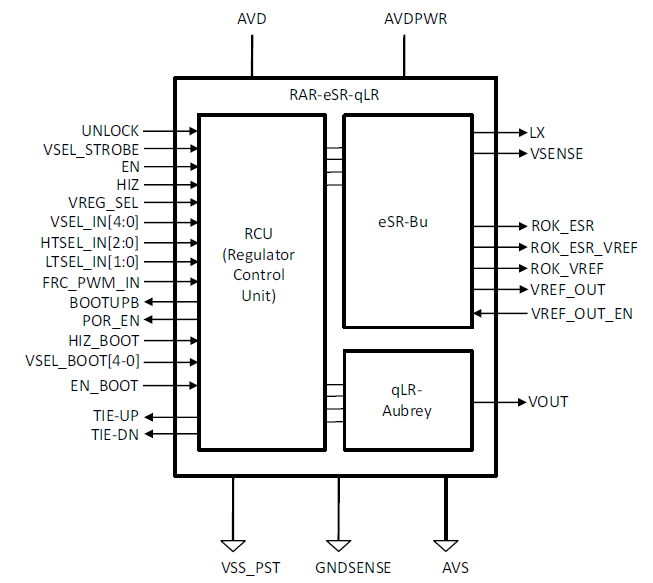

The RAR-eSR-qLR Retention Alternating Regulator combines two regulation sub-components: a high-efficiency switching regulator (eSR) and an ultra low quiescent linear regulator (qLR). A Regulation Control Unit (RCU) manages booting and transitions between each regulation functions.
Key Benefits
- Embedded RCU (Regulator Control Unit) to manage booting and mode transitions and to ensure data integrity
- Configurable output drive before delivery to fit the application
- Accessible voltage reference can be used by wake-up circuitry
- Performances in normal mode: PFM embedded mode allowing high-efficiency at low load
- High Efficiency (up to 95% peak efficiency)
- Low Bill-of-Material: fully integrated feedback and active compensation loop to reduce the number of additional external passive components
- Low Output Ripple
- Over-temperature/Over-current protected Output
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.62 V | 3.63 V | |
|
Output Voltage
|
- | 0.55 V | 2.5 V | |
|
Output current configuration
|
- | - | 1000 mA;100 mA;200 mA;300 mA;400 mA;500 mA | - |
Applications
- Smart Headset
- TWS Earpods
- Smart Speaker
- Voice Assistant
- Hearing aids
- Voice-controlled devices
- Bluetooth
- NB-IoT
- ULP MCU
- WiFi
- GNSS
- Cellular IoT
Key Performances
- -
Technical information
- Technology: TSMC 40 LP eFlash
