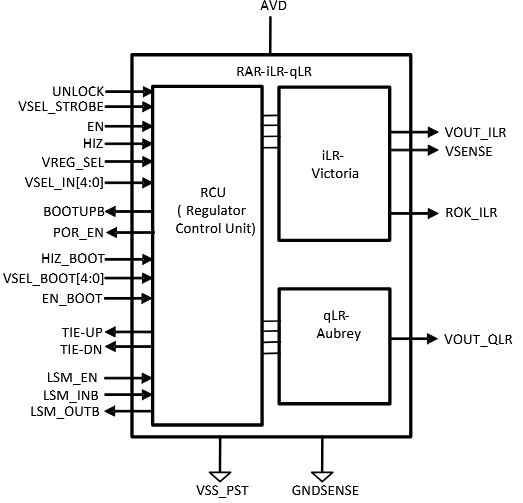

Combo voltage regulator designed in TSMC 22ULL, combining a linear regulator for active mode with an ultra-low quiescent regulator for low-power operation in sleep mode. A Regulation Control Unit (RCU) manages booting and safe transitions between each regulation functions to ease SoC integration.
Key Benefits
- Embedded RCU (Regulator Control Unit) to manage booting and safe mode transitions
- Configurable LDO output current to fit the application (from 100 mA to 500 mA)
- Low Bill-of-Material: fully integrated feedback and active compensation loop to reduce the number of additional external passive components
- Low Output Ripple
- Low quiescent current for AON supply with stringent power consumption constraints in sleep mode
Key Features
| PARAMETERS | CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|---|---|---|---|---|
|
Input Voltage
|
- | 1.62 V | 3.63 V | |
|
Output Voltage
|
- | 0.6 V | 2.5 V | |
|
Output current configuration
|
- | - | 100 mA;200 mA;300 mA;400 mA;500 mA | - |
Applications
- Smart Headset
- TWS Earpods
- Smart Speaker
- Voice Assistant
- Hearing aids
- Voice-controlled devices
- Bluetooth
- NB-IoT
- ULP MCU
- WiFi
- GNSS
- Cellular IoT
Key Performances
- Support input supply voltage up to 3.63V
- Programmable output voltage from 0.5V to 3.3V
- Performances in sleep mode: 150 nA quiescent current
- From 100 to 500 mA output current for main LDO (configurable upfront)
Technical information
- Technology: TSMC 22 uLL
